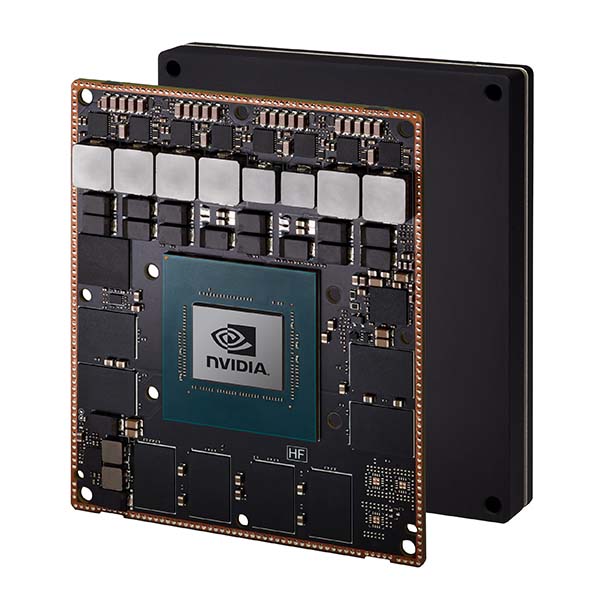

Jetson AGX Xavier Series
Jetson AGX Xavier series modules enable new levels of compute density, power efficiency, and AI inferencing capabilities at the edge. They ship with configurable power profiles preset for 10 W, 15 W, and 30 W, and Jetson AGX Xavier Industrial ships with profiles preset for 20 W and 40 W. These power profiles are switchable at runtime, and can be customized to your specific application needs. The modules also give you 10x the energy efficiency and 20x the performance of Jetson TX2.
Technical specifications
| Specification | Jetson AGX Xavier 64GB | Jetson AGX Xavier 32GB | Jetson AGX Xavier Industrial |
|---|---|---|---|
| AI performance | 32 TOPS | 32 TOPS | 30 TOPS |
| GPU | 512-core NVIDIA Volta GPU with 64 Tensor Cores | 512-core NVIDIA Volta GPU with 64 Tensor Cores | 512-core NVIDIA Volta GPU with 64 Tensor Cores |
| CPU | 8-core NVIDIA Carmel Armv8.2 64-bit, 8 MB L2 + 4 MB L3 | 8-core NVIDIA Carmel Armv8.2 64-bit, 8 MB L2 + 4 MB L3 | 8-core NVIDIA Carmel Armv8.2 64-bit, 8 MB L2 + 4 MB L3 |
| Memory | 64 GB 256-bit LPDDR4x, 136.5 GB/s | 32 GB 256-bit LPDDR4x, 136.5 GB/s | 32 GB 256-bit LPDDR4x with ECC, 136.5 GB/s |
| Power | 10 W – 30 W | 10 W – 30 W | 20 W – 40 W |
| Connector | 699-pin, integrated thermal transfer plate | 699-pin, integrated thermal transfer plate | 699-pin, integrated thermal transfer plate |
| Dimensions | 100 mm x 87 mm | 100 mm x 87 mm | 100 mm x 87 mm |
Source: NVIDIA – Jetson Xavier series
